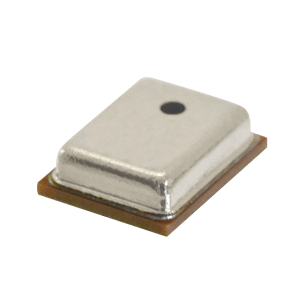

CMM-3729AT-42316-TR
3.76 x 2.24 mm, Analog, Top Port, Surface Mount, 2.0 Vdc, -42 ±3 dB, MEMS Microphone
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Analog |
|
| Directivity | Omnidirectional |
|
| Port Location | Top |
|
| Sensitivity (dB) | -42 |
|
| Sensitivity Tolerance (dB) | ±3 |
|
| Sensitivity Reduction (dB) | -0.5 |
|
| Operating Voltage (Vdc) | 1.3 ~ 3.6 |
|
| Signal : Noise Ratio (dBA) | 57 |
|
| Output Impedance (Ω) | 300 |
|
| Curr. Consumption (µA) | 160 |
|
| Operating Freq. (Hz) | 100 ~ 10000 |
|
| Termination | Surface Mount |
|
| Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 3.76 x 2.95 x 1.1 |
|
| Dimensions LxWxH (in) | 0.15 x 0.12 x 0.04 |
|
