CMEJ-4618-42-LX Series

CMEJ-4618-42-L120

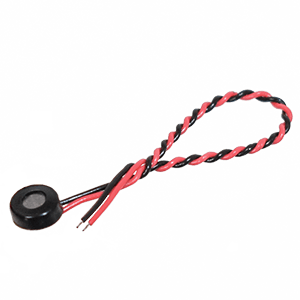

120 mm Wire Length, Elecret Condenser Microphone

Datasheet

Specifications

Type Description
Select
Output Type Analog
Directivity Omnidirectional
Port Location Top
Sensitivity (dB) -42
Sensitivity Tolerance (dB) ±3
Curr. Consumption (µA) 500
Operating Voltage (Vdc) 2
Operating Freq. (Hz) 100 ~ 10000
Signal : Noise Ratio (dBA) 60
Termination Wire Leads
Shape Round
Series CMEJ-4618-42-LX
Dimensions LxWxH (in) 0.18 x 0.18 x 0.07
Dimensions LxWxH (mm) 4.6 x 4.6 x 1.8
Output Impedance (KΩ) 2.2
Sensitivity Reduction (dB) -3
Wire Length (mm) 120

Technical Docs

Datasheet 3D Model
