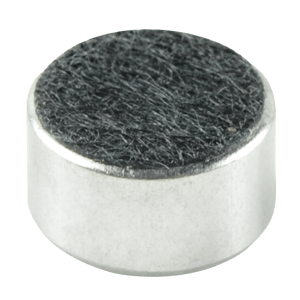

CMC-6036-40T

CMC-6036-40T Bottom View

CMC-6036-40T

6.0 mm, Omnidirectional, PCB Mount, 3.0 Vdc, Electret Condenser Microphone

Datasheet

Specifications

Type Description
Select
Output Type Analog
Directivity Omnidirectional
Port Location Top
Sensitivity (dB) -40
Sensitivity Tolerance (dB) ±2
Sensitivity Reduction (dB) -3
Operating Voltage (Vdc) 3
Signal : Noise Ratio (dBA) 56
Curr. Consumption (µA) 500
Output Impedance (KΩ) 2.2
Operating Freq. (Hz) 20 ~ 20000
Termination Solder Pads
Shape Round
Dimensions LxWxH (mm) 6 x 6 x 3.6
Dimensions LxWxH (in) 0.24 x 0.24 x 0.14

Technical Docs

Datasheet 3D Model
