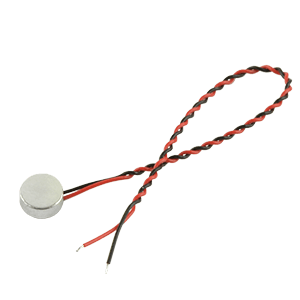

CMC-6027-42L100
6.0 mm, Omnidirectional, Wire Leads, 2.0 Vdc, IP57 Rated, Electret Condenser Microphone
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Analog |
|
| Directivity | Omnidirectional |
|
| Port Location | Top |
|
| Sensitivity (dB) | -42 |
|
| Sensitivity Tolerance (dB) | ±3 |
|
| Sensitivity Reduction (dB) | -3 |
|
| Operating Voltage (Vdc) | 2 |
|
| Signal : Noise Ratio (dBA) | 57 |
|
| Curr. Consumption (µA) | 500 |
|
| Output Impedance (KΩ) | 2.2 |
|
| Operating Freq. (Hz) | 100 ~ 20000 |
|
| Termination | Wire Leads |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 6 x 6 x 2.7 |
|
| Dimensions LxWxH (in) | 0.24 x 0.24 x 0.11 |
|
| IP Rating | IP57 |
|
