CMC-4015-40L100

CMC-4015-40L100 Back View

CMC-4015-40L100

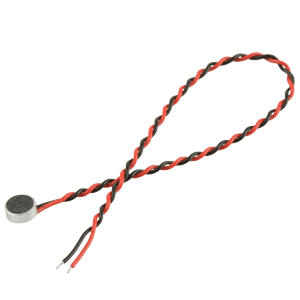

4.0 mm, Omnidirectional, Wire Leads, 2.0 Vdc, Electret Condenser Microphone

Datasheet

Specifications

Type Description
Select
Output Type Analog
Directivity Omnidirectional
Port Location Top
Sensitivity (dB) -40
Sensitivity Tolerance (dB) ±3
Sensitivity Reduction (dB) -3
Operating Voltage (Vdc) 2
Signal : Noise Ratio (dBA) 58
Curr. Consumption (µA) 500
Output Impedance (KΩ) 2.2
Operating Freq. (Hz) 20 ~ 20000
Termination Wire Leads
Shape Round
Dimensions LxWxH (mm) 4 x 4 x 1.5
Dimensions LxWxH (in) 0.16 x 0.16 x 0.06

Technical Docs

Datasheet 3D Model
