CMC-4015-25T

CMC-4015-25T

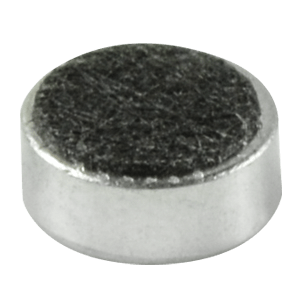

4.0 mm, Omnidirectional, PCB Mount, 3.0 Vdc, Electret Condenser Microphone

Datasheet

Specifications

Type Description
Select
Output Type Analog
Directivity Omnidirectional
Port Location Top
Sensitivity (dB) -25
Sensitivity Tolerance (dB) ±3
Sensitivity Reduction (dB) -3
Operating Voltage (Vdc) 3
Signal : Noise Ratio (dBA) 62
Curr. Consumption (µA) 500
Output Impedance (KΩ) 2.2
Operating Freq. (Hz) 100 ~ 20000
Termination Solder Pads
Shape Round
Dimensions LxWxH (mm) 4 x 4 x 1.5
Dimensions LxWxH (in) 0.16 x 0.16 x 0.06

Technical Docs

Datasheet 3D Model
