CMC-3015-44L100

Back of CMC-3015-44L100

CMC-3015-44L100

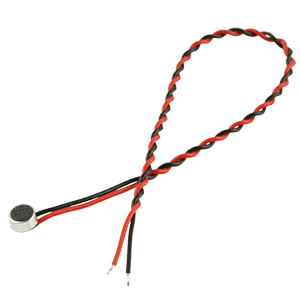

3.0 mm, Omnidirectional, Wire Leads, 2.0 Vdc, Electret Condenser Microphone

Datasheet

Specifications

Type Description
Select
Output Type Analog
Directivity Omnidirectional
Port Location Top
Sensitivity (dB) -44
Sensitivity Tolerance (dB) ±3
Sensitivity Reduction (dB) -3
Operating Voltage (Vdc) 2
Signal : Noise Ratio (dBA) 57
Curr. Consumption (µA) 500
Output Impedance (KΩ) 2.2
Operating Freq. (Hz) 100 ~ 20000
Termination Wire Leads
Shape Round
Dimensions LxWxH (mm) 3 x 3 x 1.5
Dimensions LxWxH (in) 0.12 x 0.12 x 0.06

Technical Docs

Datasheet 3D Model
