CPS-6964W-6105PM

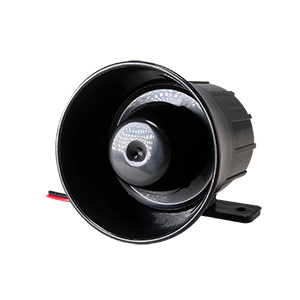

69 mm, 24 Vdc, 102 dB, Panel Mount Bracket, Driving Circuit, Six Tone, White Piezo Siren
Specifications
| Type | Description | |
|---|---|---|
| Technology | Piezo |
|
| Rated Voltage | 24 |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 102 |
|
| Mounting Style | Wire Leads |
|
| Operating Temp Range (°C) | -20 ~ 85 |
|
| Shape | Round |
|
| Washable | No |
|
| Dimensions LxWxH (mm) | 69 x 69 x 64 |
|
| Curr. Consumption (mA) | 80 |
|
| Dimensions LxWxH (in) | 2.72 x 2.72 x 2.52 |
|
| Driving Circuit | Yes |
|
| Series | CPS-6964X-X105PM |
|
Technical Docs
DatasheetAll Buzzers Categories
