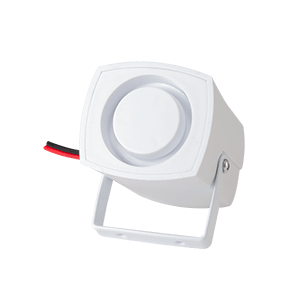

CPS-4059W-1105PM
45 mm, 24 Vdc, 100 dB, Panel Mount Bracket, Driving Circuit, One Tone, White Piezo Siren
Specifications
| Type | Description | |
|---|---|---|
| Technology | Piezo |
|
| Rated Voltage | 24 |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 100 |
|
| Mounting Style | Wire Leads |
|
| Curr. Consumption (mA) | 120 |
|
| Operating Temp Range (°C) | -20 ~ 85 |
|
| Shape | Rectangular |
|
| Washable | No |
|
| Dimensions LxWxH (mm) | 45 x 40 x 58 |
|
| Dimensions LxWxH (in) | 1.77 x 1.57 x 2.28 |
|
| Driving Circuit | Yes |
|
| Series | CPS-4059X-X105PM |
|
