CEB-2704
CEB-2704
CEB-2704 Alternate View

CEB-2704

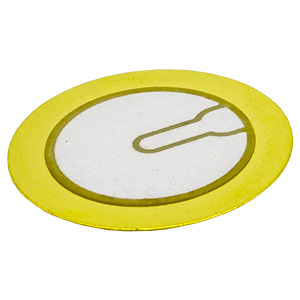

27 mm Piezo Buzzer Element

Datasheet

Specifications

Type Description
Select
Rated Voltage 30
Input Type Vp-p
Shape Round
Washable No
Dimensions LxWxH (mm) 27 x 27 x 0.4
Dimensions LxWxH (in) 1.063 x 1.063 x 0.016
Driving Circuit No

Technical Docs

Datasheet

Buy from Same Sky
