CEB-21028
CEB-21028
CEB-21028 Alternate View

CEB-21028

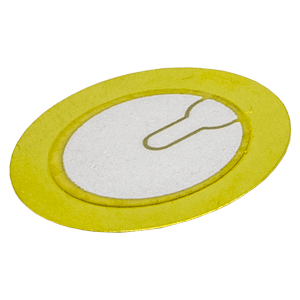

21 mm Piezo Buzzer Element

Datasheet

Specifications

Type Description
Select
Rated Voltage 30
Input Type Vp-p
Shape Round
Washable No
Dimensions LxWxH (mm) 21 x 21 x 0.28
Dimensions LxWxH (in) 0.827 x 0.827 x 0.011
Driving Circuit No

Technical Docs

Datasheet

Buy from Same Sky
