CEB-2043
CEB-2043
CEB-2043 Alternate View

CEB-2043

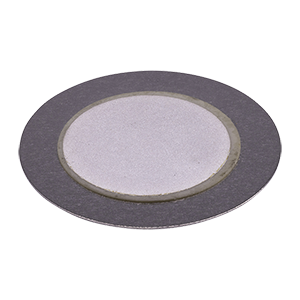

20 mm Piezo Buzzer Element

Datasheet

Specifications

Type Description
Select
Rated Voltage 30
Input Type Vp-p
Shape Round
Washable No
Driving Circuit No
Dimensions LxWxH (mm) 20 x 20 x 0.43
Dimensions LxWxH (in) 0.79 x 0.79 x 0.02
IP Rating No IP Rating

Technical Docs

Datasheet
