CEB-1541-L100
CEB-1541-L100
CEB-1541-L100 Alternate View

CEB-1541-L100

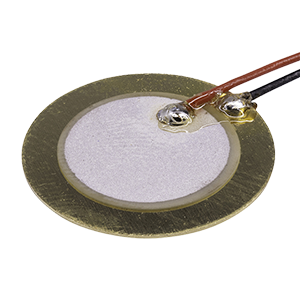

15 mm Piezo Buzzer Element with Lead Wires

Datasheet

Specifications

Type Description
Select
Rated Voltage 30
Input Type Vp-p
Mounting Style Wire
Shape Round
Washable No
Dimensions LxWxH (mm) 15 x 15 x 0.41
Dimensions LxWxH (in) 0.59 x 0.59 x 0.02
Driving Circuit No

Technical Docs

Datasheet
