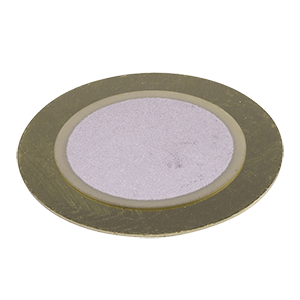

CEB-1541
CEB-1541
CEB-1541 Alternate View

CEB-1541

15 mm Piezo Buzzer Element

Datasheet

Specifications

Type Description
Select
Rated Voltage 30
Input Type Vp-p
Shape Round
Washable No
Driving Circuit No
Dimensions LxWxH (mm) 15 x 15 x 0.41
Dimensions LxWxH (in) 0.59 x 0.59 x 0.02
IP Rating No IP Rating

Technical Docs

Datasheet
