CEB-1213-L100
CEB-1213-L100
CEB-1213-L100 Alternate View

CEB-1213-L100

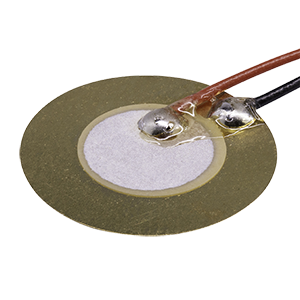

12 mm Piezo Buzzer Element with Lead Wires

Datasheet

Specifications

Type Description
Select
Rated Voltage 30
Input Type Vp-p
Mounting Style Wire
Shape Round
Washable No
Dimensions LxWxH (mm) 12 x 12 x 0.13
Dimensions LxWxH (in) 0.47 x 0.47 x 0.01
Driving Circuit No

Technical Docs

Datasheet
