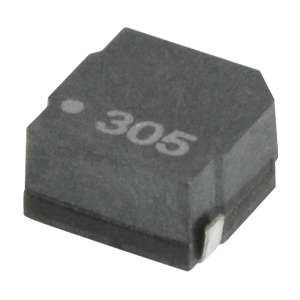

CSS-0575B-SMT-TR
5 mm, 3 V, 75 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer
The CSS-0575B-SMT-TR is a magnetic transducer buzzer housed in a compact 5 mm x 5 mm surface mount package. Featuring a low profile of 2.5 mm and an SPL of 75 dB at 10 cm, this micro buzzer is ideal for portable equipment applications.
Features
| Compact footprint |
| Low profile |
| Externally driven |
| Reflow solder compatible |
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | No |
|
| Input Type | Vo-p |
|
| Rated Voltage | 3 |
|
| Sound Pressure (dB) | 75 |
|
| Mounting Style | Surface Mount |
|
| Curr. Consumption (mA) | 110 |
|
| Operating Temp Range (°C) | -30 ~ 70 |
|
| Shape | Square |
|
| Dimensions LxWxH (mm) | 5 x 5 x 2.5 |
|
| Dimensions LxWxH (in) | 0.2 x 0.2 x 0.1 |
|
| Washable | No |
|
