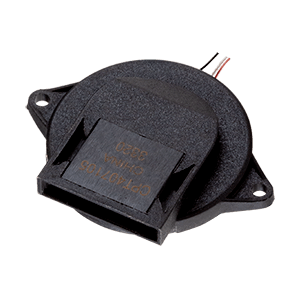

CPT-407-105-L60
CPT-407-105-L60
CPT-407-105-L60
CPT-407-105-L60 Alternate View
CPT-407-105-L60 Alternate View

CPT-407-105-L60

39.7 mm, 14 Vdc, 105 dB, Wire Leads, Continuous Tone, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Rated Voltage 14
Input Type Vdc
Sound Pressure (dB) 105
Mounting Style Wire Leads
Curr. Consumption (mA) 30
Shape Round
Washable No
Dimensions LxWxH (in) 1.56 x 1.56 x 0.26
IP Rating No
Dimensions LxWxH (mm) 39.7 x 39.7 x 6.65

Technical Docs

Datasheet 3D Model
