CPT-2521C-500
25.6 mm, 50 Vp-p, 95 dB, IP68 Rated, Wire Leads, Piezo Audio Transducer Buzzer

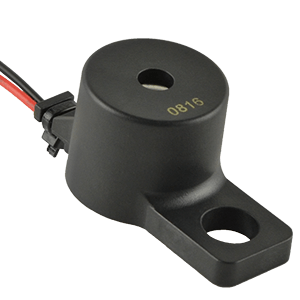

The CPT-2521C-500 is a waterproof piezo transducer buzzer housed in a 25 mm diameter package. With a height of 21 mm, this waterproof buzzer features an IP68 rating, wire leads and an SPL of 95 dB at 30 cm, making it well-suited for applications that require ruggedized performance.
Features
| IP68 rated |
| Externally driven |
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | No |
|
| Input Type | Vp-p |
|
| Rated Voltage | 50 |
|
| Sound Pressure (dB) | 95 |
|
| Mounting Style | Wire Leads |
|
| Curr. Consumption (mA) | 40 |
|
| Operating Temp Range (°C) | -30 ~ 85 |
|
| Shape | Round |
|
| Dimensions LxWxH (mm) | 25.6 x 25.6 x 21.6 |
|
| Dimensions LxWxH (in) | 1.01 x 1.01 x 0.85 |
|
| IP Rating | IP68 |
|
| Washable | No |
|
