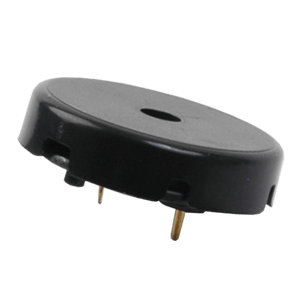

CPE-813

CPE-813

22.1 mm, 30 V, 84 dB, 4.0 kHz, Through Hole, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
IP Rating No
Input Type Vp-p
Rated Voltage 30
Sound Pressure (dB) 84
Mounting Style Through Hole
Curr. Consumption (mA) 6
Shape Round
Dimensions LxWxH (mm) 22.1 x 22.1 x 6.6
Dimensions LxWxH (in) 0.87 x 0.87 x 0.26
Washable No

Buy from Same Sky
