CPE-171

CPE-171

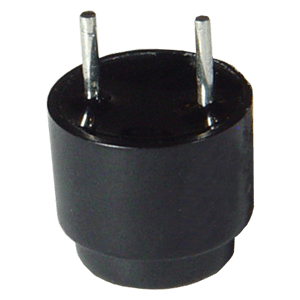

9 mm, 30 V, 75 dB, Through Hole, Sealed, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Input Type Vp-p
Rated Voltage 30
Sound Pressure (dB) 75
Mounting Style Through Hole
Curr. Consumption (mA) 4
Operating Temp Range (°C) -30 ~ 85
Shape Round
Dimensions LxWxH (mm) 9 x 9 x 8
Dimensions LxWxH (in) 0.35 x 0.35 x 0.31
Washable Yes
