CPE-150

CPE-150

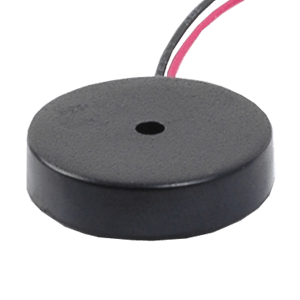

16.5 mm, 30 V, 80 dB, 5.0 kHz, Wire Leads, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
IP Rating No
Input Type Vp-p
Rated Voltage 30
Sound Pressure (dB) 80
Mounting Style Wire Leads
Curr. Consumption (mA) 9
Shape Round
Dimensions LxWxH (mm) 16.5 x 16.5 x 4
Dimensions LxWxH (in) 0.65 x 0.65 x 0.16
Washable No

Technical Docs

Datasheet 3D Model
