CMT-8503-85B-SMT-TR
8.5 mm, 3.6 Vo-p, 85 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

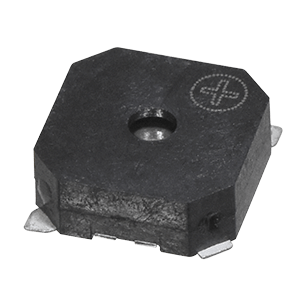

The CMT-8503-85B-SMT-TR is a magnetic transducer buzzer housed in a compact 8.5 mm x 8.5 mm surface mount package. Featuring a low profile of 3 mm and an SPL of 85 dB at 10 cm, this micro buzzer is ideal for a range of portable applications.
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | No |
|
| Input Type | Vo-p |
|
| Rated Voltage | 3.6 |
|
| Sound Pressure (dB) | 85 |
|
| Mounting Style | Surface Mount |
|
| Curr. Consumption (mA) | 90 |
|
| Operating Temp Range (°C) | -40 ~ 85 |
|
| Dimensions LxWxH (mm) | 8.5 x 8.5 x 3 |
|
| Shape | Square |
|
| Dimensions LxWxH (in) | 0.34 x 0.34 x 0.12 |
|
| Washable | No |
|
