CMT-1421-87-SMT-TR
CMT-1421-87-SMT-TR
CMT-1421-87-SMT-TR - Alternate View

CMT-1421-87-SMT-TR

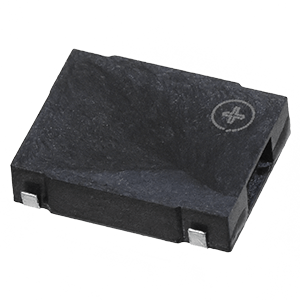

14 mm, 5 Vo-p, 87 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Input Type Vo-p
Rated Voltage 5
Sound Pressure (dB) 87
Mounting Style Surface Mount
Curr. Consumption (mA) 80
Dimensions LxWxH (mm) 14 x 11 x 3
Shape Rectangular
Dimensions LxWxH (in) 0.55 x 0.43 x 0.12
Washable No
IP Rating No
