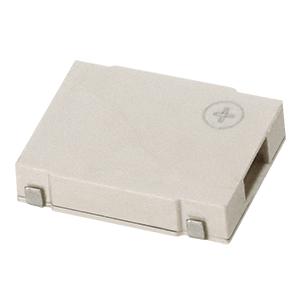

CMT-1403-87-SMT-TR
14 mm, 5 Vo-p, 87 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | No |
|
| Input Type | Vo-p |
|
| Rated Voltage | 5 |
|
| Sound Pressure (dB) | 87 |
|
| Mounting Style | Surface Mount |
|
| Curr. Consumption (mA) | 80 |
|
| Operating Temp Range (°C) | -40 ~ 85 |
|
| Dimensions LxWxH (mm) | 14 x 11 x 3 |
|
| Shape | Rectangular |
|
| Dimensions LxWxH (in) | 0.55 x 0.43 x 0.12 |
|
| Washable | No |
|
