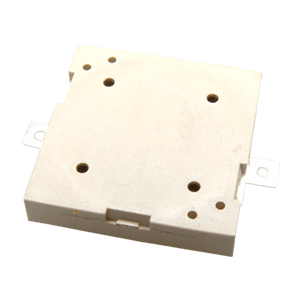

CMT-1303-SMT

CMT-1303-SMT

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

Recommended Replacement

CMT-13031-SMT-TR

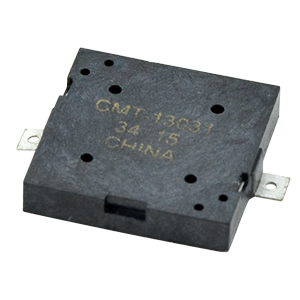

CMT-13031-SMT-TR 12.8 mm, 25 V, 70 dB, Surface Mount [SMT], Piezo Audio Transducer Buzzer

12.8 mm, 25 V, 70 dB, Surface Mount (SMT), Piezo Audio Transducer Buzzer


Specifications

Type Description
Select
Driving Circuit No
Input Type Vp-p
Rated Voltage 25
Sound Pressure (dB) 70
Mounting Style Surface Mount
Curr. Consumption (mA) 5
Operating Temp Range (°C) -20 ~ 70
Dimensions LxWxH (mm) 12.8 x 12.8 x 2.5
Dimensions LxWxH (in) 0.5 x 0.5 x 0.1
Washable No
