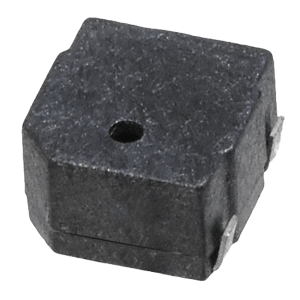

CMT-0503-75-SMT-TR

5 mm, 3 Vo-p, 75 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

The CMT-0503-75-SMT-TR is a magnetic transducer buzzer housed in a compact 5 mm x 5 mm surface mount package. Featuring a low profile of 3 mm and an SPL of 75 dB at 10 cm, this micro buzzer is ideal for a range of portable applications.

Datasheet

Specifications
Technical Docs
Compliance
Other Resources

Specifications

Type	Description	Select
Driving Circuit	No
Input Type	Vo-p
Rated Voltage	3
Sound Pressure (dB)	75
Mounting Style	Surface Mount
Curr. Consumption (mA)	100
Operating Temp Range (°C)	-40 ~ 85
Dimensions LxWxH (mm)	5 x 5 x 3
Shape	Square
Dimensions LxWxH (in)	0.2 x 0.2 x 0.12
Washable	No

Technical Docs

Datasheet 3D Model PCB Footprint

Compliance

Product Notifications RoHS & REACH

Other Resources

SPL Calculator Custom Audio Solutions Audio Design Services
