CEP-1152

CEP-1152

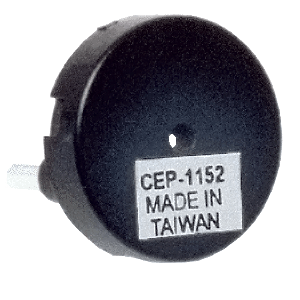

16.5 mm, 30 V, 84 dB, Through Hole, Piezo Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
IP Rating No
Input Type Vp-p
Rated Voltage 30
Sound Pressure (dB) 84
Mounting Style Through Hole
Curr. Consumption (mA) 9
Shape Round
Dimensions LxWxH (mm) 16.5 x 16.5 x 7
Dimensions LxWxH (in) 0.65 x 0.65 x 0.28
Washable No
