CEM-1203(42)

CEM-1203(42)

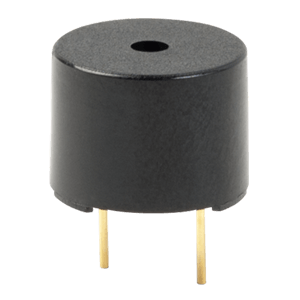

12 mm, 3.5 V, 85 dB, Through Hole, Magnetic Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Input Type Vo-p
Rated Voltage 3.5
Sound Pressure (dB) 85
Mounting Style Through Hole
Curr. Consumption (mA) 35
Operating Temp Range (°C) -20 ~ 60
Shape Round
Dimensions LxWxH (mm) 12 x 12 x 8.5
Dimensions LxWxH (in) 0.47 x 0.47 x 0.33
Washable No
