CCG-1206

CCG-1206
CCG-1206 Alternate View

CCG-1206

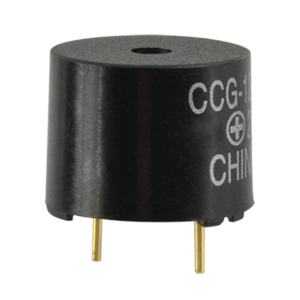

12 mm, 5 V, 85 dB, Through Hole, Sealed, Magnetic Audio Transducer Buzzer

Datasheet

Specifications

Type Description
Select
Driving Circuit No
Input Type Vo-p
Rated Voltage 5
Sound Pressure (dB) 85
Mounting Style Through Hole
Curr. Consumption (mA) 50
Operating Temp Range (°C) -30 ~ 70
Shape Round
Dimensions LxWxH (mm) 12 x 12 x 10
Dimensions LxWxH (in) 0.47 x 0.47 x 0.39
Washable Yes
