Waterproof USB Connectors
IP Rated Micro B and Type C Receptacles
IP Rated USB Connectors for Rugged Environments
Same Sky's waterproof USB connectors offer Ingress Protection (IP) ratings of IPX5, IPX6, IPX7, IPX8, IP67, or IP68 and conform to the USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 2x2, or USB4 standard. Featuring surface mount and mid mount SMT mounting styles, these USB Micro B and Type C receptacles come available in vertical or horizontal orientations. Our waterproof USB jacks further boast high reliability up to 10,000 mating cycles, making them ideal for dealing with the moisture and contaminants found in industrial and outdoor applications. 90 W power-only USB Type C receptacles with IPX5 ratings are also available.
Highlights
- IPX5, IPX6, IPX7, IPX8, IP67, or IP68 ratings
- Up to USB4 standards
- Mid mount SMT and SMT mounting styles
- Horizontal and vertical orientations
- High reliability up to 10,000 mating cycles
UJ20-C-G-MSMT-TR-68
Type C, USB 2.0, 480 Mbps, 20 Vdc, 5 A, Right Angle, 1 µin Plating Thickness, Mid Mount SMT, Black Insulator, IP68, USB Receptacle |
UJ20-C-H-G-SMT-P16-TR-67
Type C, USB 2.0, 480 Mbps, 48 Vac, 3 A, Horizontal, Gold Plated 3u, Surface Mount, 16 pin, USB Receptacle |
UJ20-C-V-G-SMT-P16-TR-65
Type C, USB 2.0, 480 Mbps, 48 Vac, 5 A,Vertical, Gold plated 3u, Surface Mount, 16 pin, No EMI, USB Receptacle |
UJ20-C-V-G-SMT-P16-TR-66
Type C, USB 2.0, 480 Mbps, 48 Vac, 5 A, Vertical, Gold Plated 3u, Surface Mount, 16 pin, IPX6, USB Receptacle |
UJ20-C-V-SMT-TR-68
Type C, USB 2.0, 480 Mbps, 20 Vdc, 5 A, Vertical, 1 µin Plating Thickness, Surfacce Mount, Black Insulator, IP68, USB Receptacle |
UJ32-C-H-G-SMT-4-P24-TR-68
Type C, USB 3.2, 5 Gbps, 48 Vac, 5 A, Horizontal, Gold Plated 30u,Surface Mount, 24 pin, IPX8, USB Receptacle |
UJ32-C-H-G-SMT-TR-68
Type C, USB 3.2 Gen 2x2, 20 Gbps, 20 Vac, 5 A, Right Angle, Gold Flash, Surface Mount, Black Insulator, IP68, USB Receptacle |
UJ32-C-H-MSMT-TR-68
Type C, USB 3.2 Gen 1, 10 Gbps, 20 Vdc, 5 A, Right Angle, 1 µin Plating Thickness, Mid Mount SMT, Black Insulator, IP68, USB Receptacle |
UJ40-C-MSMT-TR-68
Type C, USB4, 40 Gbps, 20 Vdc, 5 A, Right Angle, 1 µin Plating Thickness, Mid Mount SMT, Black Insulator, IP68, USB Receptacle |
UJ40-C-V-SMT-TR-68
Type C, USB4, 40 Gbps, 20 Vdc, 5 A, Vertical, 1 µin Plating Thickness, Surface Mount, Black Insulator, IP68, USB Receptacle |

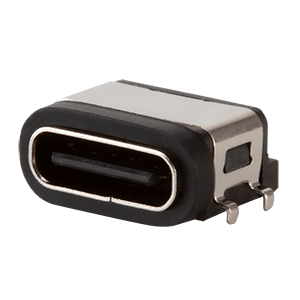

UJC-H-G-MSMT-P6-TR-65
Type C, Power Only, 30 Vac, 3 A, Horizontal, Gold plated 3u, Mid Surface Mount, 6 pin, IPX5, USB Receptacle |
UJC-H-G-SMT-1-P6-TR-65
Type C, Power Only, 30 Vac, 3 A, Horizontal, Gold Plated 1u, Surface Mount, 6 pin, IPX5, USB Receptacle |

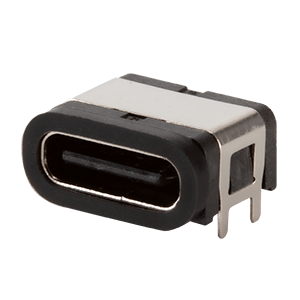

UJC-H-G-SMT-P6-TR-65
Type C, Power Only, 30 Vac, 3 A, Horizontal, Gold plated 3u, Surface Mount, 6 pin, IPX5, USB Receptacle |
UJ31-CH-G-SMT-TR-67
Type C, USB 3.2 Gen 2, 10 Gbps, 20 Vdc, 5 A, Right Angle, Surface Mount, Black Insulator, IP67, USB Receptacle |
UJ31-CH-3-MSMT-TR-67
Type C, USB 3.2 Gen 2, 10 Gbps, 20 Vdc, 5 A, Right Angle, Mid Mount (SMT), Black Insulator, IP67, USB Receptacle |
UJ2W-MIBH-4-SMT
Micro B, USB 2.0, 480 Mbps, 30 Vac, 1.8 A, Right Angle, Surface Mount, IP67, USB Receptacle |
UJ2-MIBH-4-SMT-TR-67
Micro B, USB 2.0, 480 Mbps, 30 Vac, 1.8 A, Right Angle, Surface Mount (SMT), Black Insulator, IP67, USB Receptacle |
UJ2-MIBH-3-MSMT-TR-67
Micro B, USB 2.0, 480 Mbps, 30 Vdc, 1.8 A, Right Angle, Mid Mount (SMT), Black Insulator, IP67, USB Receptacle |
UJ2-MIBH-2-SMT-TR-67
Micro B, USB 2.0, 480 Mbps, 30 Vac, 1.8 A, Right Angle, Surface Mount, Black Insulator, IP67, USB Receptacle |
UJ2-MIBV-4-SMT-TR-67
Micro B, USB 2.0, 480 Mbps, 30 Vac, 1.8 A, Vertical, Surface Mount, Waterproof IP67, USB Receptacle |
