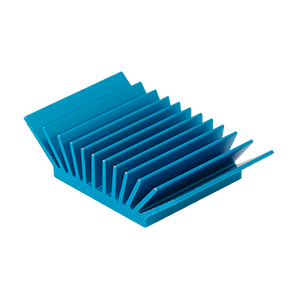

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | Not Applicable |
|
| Mounting Style | PCB |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 25.44 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 29 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 9.2 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 5.8 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 2.95 |
|
| Material | AL6063-T5 |
|
| Material Finish | Blue Anodized |
|
| Thermal Pad | No |
|
| Dimensions LxWxH (mm) | 19 x 31.5 x 7.5 |
|
| Dimensions LxWxH (in) | 0.75 x 1.24 x 0.3 |
|
| Series | HSE01 |
|
