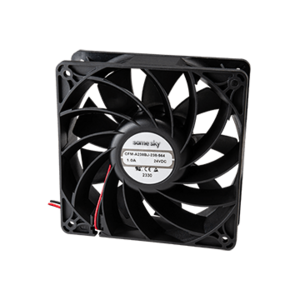

CFM-A238BJ-238-564-22
24 V, 830 mA, 120 x 120 x 38 mm, Dc Fan, Tachometer Signal, PWM Control Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 180.36 |
|
| Rated Speed (RPM) | 3800 |
|
| Static Pressure (inH2O) | 0.55 |
|
| Noise (dBA) | 56.4 |
|
| Rated Voltage (Vdc) | 24 |
|
| Max Input Current (mA) | 1000 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 120 x 120 x 38 |
|
| Series | CFM-A2BJ |
|
