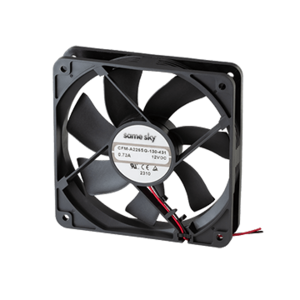

CFM-A225SG-123-374-22
12 V, 0.42 A, 120 x 120 x 25 mm, Tachometer Signal, PWM Control Signal, Dc Axial Fan
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Sleeve |
|
| Air Flow (CFM) | 80.17 |
|
| Rated Speed (RPM) | 2300 |
|
| Static Pressure (inH2O) | 0.17 |
|
| Noise (dBA) | 38.6 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 420 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 120 x 120 x 25 |
|
| Series | CFM-A2SG |
|
