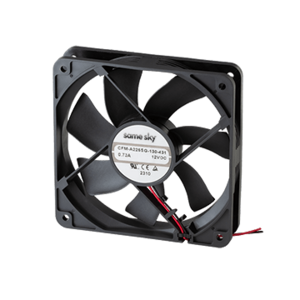

CFM-A225SG-123-374-20

CFM-A225SG-123-374-20

12 V, 0.42 A, 120 x 120 x 25 mm, Tachometer Signal, Dc Axial Fan

Datasheet

Specifications

Type Description
Select
Bearing Type Sleeve
Air Flow (CFM) 80.17
Rated Speed (RPM) 2300
Static Pressure (inH2O) 0.17
Noise (dBA) 38.6
Rated Voltage (Vdc) 12
Max Input Current (mA) 420
Tachometer Signal Yes
Rotation Detector No
PWM Control Signal No
Dimensions LxWxH (mm) 120 x 120 x 25
Series CFM-A2SG
