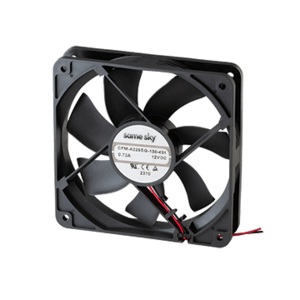

CFM-A225BG-130-431-22
12 V, 0.56 A, 120 x 120 x 25 mm, Tachometer Signal, PWM Control Signal, Dc Axial Fan
Specifications
Type | Description | |
---|---|---|
Bearing Type | Ball |
|
Air Flow (CFM) | 104.45 |
|
Rated Speed (RPM) | 3000 |
|
Static Pressure (inH2O) | 0.29 |
|
Noise (dBA) | 45.9 |
|
Rated Voltage (Vdc) | 12 |
|
Max Input Current (mA) | 560 |
|
Tachometer Signal | Yes |
|
Rotation Detector | No |
|
PWM Control Signal | Yes |
|
Dimensions LxWxH (mm) | 120 x 120 x 25 |
|
Series | CFM-A2BG |
|
