CFM-A225BG-115-281-20

CFM-A225BG-115-281-20

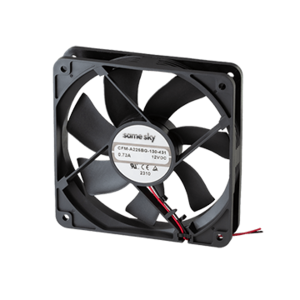

12 V, 0.12 A, 120 x 120 x 25 mm, Tachometer Signal, Dc Axial Fan

Datasheet

Specifications

Type Description
Select
Bearing Type Ball
Air Flow (CFM) 51.75
Rated Speed (RPM) 1500
Static Pressure (inH2O) 0.08
Noise (dBA) 26.73
Rated Voltage (Vdc) 12
Max Input Current (mA) 120
Tachometer Signal Yes
Rotation Detector No
PWM Control Signal No
Dimensions LxWxH (mm) 120 x 120 x 25
Series CFM-A2BG

Technical Docs

Datasheet 3D Model
