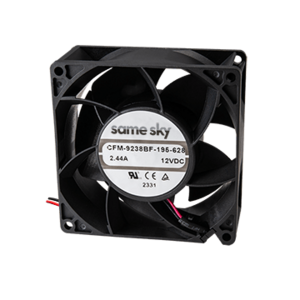

CFM-9238BF-195-628-22
12 V, 1800 mA, 92 x 92 x 38 mm, Dc Fan, Tachometer Signal, PWM Control Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 129.55 |
|
| Rated Speed (RPM) | 9500 |
|
| Static Pressure (inH2O) | 2.31 |
|
| Noise (dBA) | 62.8 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 2160 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 92 x 92 x 38 |
|
| Series | CFM-92BF |
|
