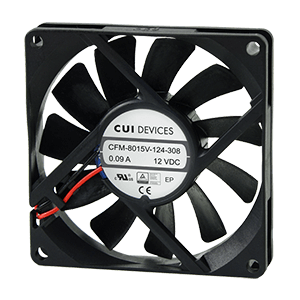

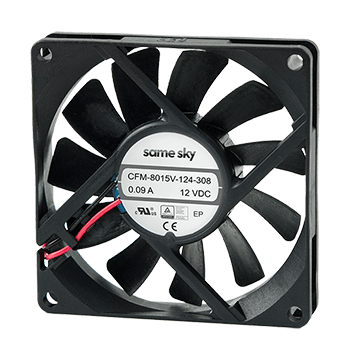

CFM-80V Series
80 mm x 80 mm Dc Axial Fan, omniCOOL™ Bearing
| Model Number | Description | Datasheet | Stock Check | |
|---|---|---|---|---|
|
CFM-8015V-124-308 | 12 V, 104 mA, 80 x 80 x 15 mm, Dc Fan | ||
|
CFM-8015V-127-320 | 12 V, 149 mA, 80 x 80 x 15 mm, Dc Fan | ||
|
CFM-8025V-445-450-11 | 48 V, 115 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-445-450-20 | 48 V, 115 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-442-435-11 | 48 V, 106 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-442-435-20 | 48 V, 106 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-245-450-11 | 24 V, 191 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-245-450-20 | 24 V, 191 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-242-435-11 | 24 V, 158 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-242-435-20 | 24 V, 158 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-232-330-11 | 24 V, 75 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-232-330-20 | 24 V, 75 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-229-300-11 | 24 V, 58 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-229-300-20 | 24 V, 58 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-226-280-11 | 24 V, 48 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-226-280-20 | 24 V, 48 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-148-447-11 | 12 V, 357 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-148-447-20 | 12 V, 357 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-145-431-11 | 12 V, 276 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-145-431-20 | 12 V, 276 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-142-415-11 | 12 V, 230 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-142-415-20 | 12 V, 230 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-132-330-11 | 12 V, 138 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-132-330-20 | 12 V, 138 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-129-300-11 | 12 V, 106 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-129-300-20 | 12 V, 106 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-126-280-11 | 12 V, 75 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-126-280-20 | 12 V, 75 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-120-204-11 | 12 V, 48 mA, 80 x 80 x 25 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8025V-120-204-20 | 12 V, 48 mA, 80 x 80 x 25 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-233-380-11 | 24 V, 74 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-233-380-20 | 24 V, 74 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-230-350-11 | 24 V, 59 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-230-350-20 | 24 V, 59 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-226-300-11 | 24 V, 49 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-226-300-20 | 24 V, 49 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-146-480-11 | 12 V, 328 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-146-480-20 | 12 V, 328 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-142-450-11 | 12 V, 265 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-142-450-20 | 12 V, 265 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-139-430-11 | 12 V, 225 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-139-430-20 | 12 V, 225 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-133-380-11 | 12 V, 150 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-133-380-20 | 12 V, 150 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-130-350-11 | 12 V, 110 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-130-350-20 | 12 V, 110 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8020V-126-300-11 | 12 V, 86 mA, 80 x 80 x 20 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8020V-126-300-20 | 12 V, 86 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8015V-230-347-11 | 24 V, 106 mA, 80 x 80 x 15 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8015V-230-347-20 | 24 V, 106 mA, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8015V-227-320-11 | 24 V, 75 mA, 80 x 80 x 15 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8015V-227-320-20 | 24 V, 75 mA, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8015V-224-308-11 | 24 V, 65 mA, 80 x 80 x 15 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8015V-224-308-20 | 24 V, 65 mA, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8015V-130-347-11 | 12 V, 188 mA, 80 x 80 x 15 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8015V-130-347-20 | 12 V, 188 mA, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8015V-127-320-11 | 12 V, 149 mA, 80 x 80 x 15 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8015V-127-320-20 | 12 V, 149 mA, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8015V-124-308-11 | 12 V, 104 mA, 80 x 80 x 15 mm, Dc Fan, Rotation Detector Signal | ||
|
CFM-8015V-124-308-20 | 12 V, 104 mA, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal | ||
|
CFM-8025V-442-435 | 48 V, 106 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-445-450 | 48 V, 115 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-232-330 | 24 V, 75 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-242-435 | 24 V, 158 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-245-450 | 24 V, 191 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-226-280 | 24 V, 48 mA, 80 x 80 x 25 mm, omniCOOL™ Dc Axial Fan | ||
|
CFM-8025V-229-300 | 24 V, 58 mA, 80 x 80 x 25 mm, omniCOOL™ Dc Axial Fan | ||
|
CFM-8025V-145-431 | 12 V, 276 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-148-447 | 12 V, 357 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-132-330 | 12 V, 138 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-142-415 | 12 V, 230 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-126-280 | 12 V, 75 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8025V-129-300 | 12 V, 106 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8020V-233-380 | 24 V, 74 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8025V-120-204 | 12 V, 48 mA, 80 x 80 x 25 mm, Dc Fan | ||
|
CFM-8020V-226-300 | 24 V, 49 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8020V-230-350 | 24 V, 59 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8020V-142-450 | 12 V, 265 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8020V-146-480 | 12 V, 328 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8020V-133-380 | 12 V, 150 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8020V-139-430 | 12 V, 225 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8020V-126-300 | 12 V, 86 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8020V-130-350 | 12 V, 110 mA, 80 x 80 x 20 mm, Dc Fan | ||
|
CFM-8015V-227-320 | 24 V, 75 mA, 80 x 80 x 15 mm, Dc Fan | ||
|
CFM-8015V-230-347 | 24 V, 106 mA, 80 x 80 x 15 mm, Dc Fan | ||
|
CFM-8015V-130-347 | 12 V, 188 mA, 80 x 80 x 15 mm, Dc Fan | ||
|
CFM-8015V-224-308 | 24 V, 65 mA, 80 x 80 x 15 mm, Dc Fan | ||
