CFM-8020CF-145-401-20
12 V, 0.30 A, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal

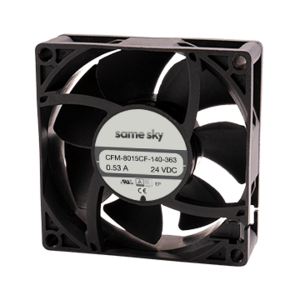

The CFM-80CF series is a family of 80 x 80 mm dc axial fans featuring airflows up to 44.14 CFM and rated speeds from 2000 to 4500 RPM. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| omniCOOL™ bearing system |
| 80 x 80 mm frame |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Dimensions LxWxH (mm) | 80 x 80 x 20 |
|
| Series | CFM-80CF |
|
| Air Flow (CFM) | 44.14 |
|
| Max Input Current (mA) | 300 |
|
| Noise (dBA) | 40.2 |
|
| PWM Control Signal | No |
|
| Rated Speed (RPM) | 4500 |
|
| Rated Voltage (Vdc) | 12 |
|
| Rotation Detector | No |
|
| Static Pressure (inH2O) | 0.24 |
|
| Tachometer Signal | Yes |
|
