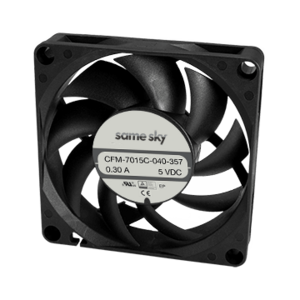

CFM-7015C-140-357-22
12 V, 260 mA, 70 x 70 x 15 mm, Dc Fan, Tachometer Signal, PWM Control Signal
The CFM-70C series is a family of 70 x 70 mm dc axial fans featuring airflows up to 34.5 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| omniCOOL™ bearing system |
| 70 x 70 mm frame |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
| Auto restart protection standard on all models |
Specifications
| Type | Description | |
|---|---|---|
| Air Flow (CFM) | 25.68 |
|
| Bearing Type | omniCOOL™ |
|
| Rated Speed (RPM) | 4000 |
|
| Static Pressure (inH2O) | 0.14 |
|
| Noise (dBA) | 35.7 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 260 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 70 x 70 x 15 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-70C |
|
