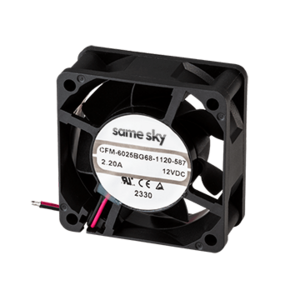

CFM-6025BG68-1100-535-22
12 V, 1060 mA, 60 x 60 x 25 mm, IP68, Dc Fan, Tachometer Signal, PWM Control Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 43.4 |
|
| Rated Speed (RPM) | 10000 |
|
| Static Pressure (inH2O) | 1.2 |
|
| Noise (dBA) | 53.5 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 1060 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 60 x 60 x 25 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| IP Rating | IP68 |
|
| Series | CFM-60BG68 |
|
