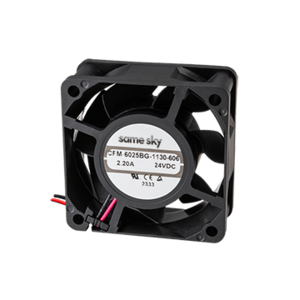

CFM-6025BG-2130-606-22
24 V, 800 mA, 60 x 60 x 25 mm, Tachometer Signal, PWM Control Signal, Dc Fan
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 56.77 |
|
| Rated Speed (RPM) | 13000 |
|
| Static Pressure (inH2O) | 1.98 |
|
| Noise (dBA) | 60.6 |
|
| Rated Voltage (Vdc) | 24 |
|
| Max Input Current (mA) | 960 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 60 x 60 x 25 |
|
| Series | CFM-60BG |
|
