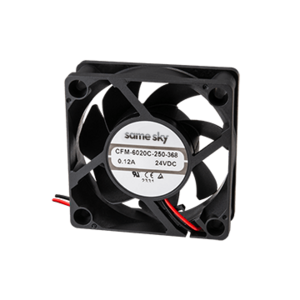

CFM-6020C-250-368-20
24 V, 100 mA, 60 x 60 x 20 mm, Tachometer Signal, omniCOOL™ Dc Fan
Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, this axial fan bridges the cost-performance gap between conventional sleeve and ball bearing fan designs.
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 25.04 |
|
| Rated Speed (RPM) | 5000 |
|
| Static Pressure (inH2O) | 0.23 |
|
| Noise (dBA) | 32.9 |
|
| Rated Voltage (Vdc) | 24 |
|
| Max Input Current (mA) | 150 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 60 x 60 x 20 |
|
| Series | CFM-60C |
|
