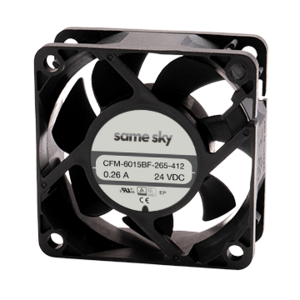

CFM-6015BF-235-278-22
24 V, 0.06 A, 60 x 60 x 15 mm, Dc Fan, Tachometer Signal, PWM Control Signal
Features
| 60 x 60 mm frame |
| Multiple speed options for different cooling needs |
| Dual ball bearing construction |
| Tachometer signal available |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Max Input Current (mA) | 60 |
|
| Dimensions LxWxH (mm) | 60 x 60 x 15 |
|
| Series | CFM-60BF |
|
| Air Flow (CFM) | 15.41 |
|
| Noise (dBA) | 27.8 |
|
| PWM Control Signal | Yes |
|
| Rated Speed (RPM) | 3500 |
|
| Rated Voltage (Vdc) | 24 |
|
| Rotation Detector | No |
|
| Static Pressure (inH2O) | 0.09 |
|
| Tachometer Signal | Yes |
|
