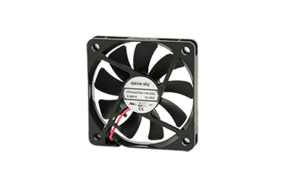

CFM-6010V-135-250-11
12 V, 87 mA, 60 x 60 x 10 mm, Dc Fan, Rotation Detector Signal
The CFM-60V series is a family of 60 x 60 mm dc axial fans featuring airflows up to 30.4 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| omniCOOL™ bearing system |
| 60 x 60 mm frame |
| Multiple speed options for different cooling needs |
| Auto restart protection standard on all models |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 14.3 |
|
| Rated Speed (RPM) | 3500 |
|
| Static Pressure (inH2O) | 0.1 |
|
| Noise (dBA) | 25 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 87 |
|
| Tachometer Signal | No |
|
| Rotation Detector | Yes |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 60 x 60 x 10 |
|
| Series | CFM-60V |
|
