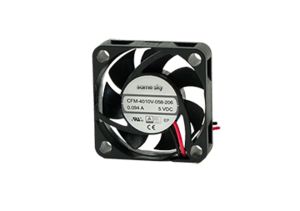

CFM-4020V-050-165-11
5 V, 87 mA, 40 x 40 x 20 mm, Dc Fan, Rotation Detector Signal
The CFM-40V series is a family of 40 x 40 mm dc axial fans featuring airflows up to 10.8 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| 40 x 40 mm frame |
| Auto restart protection standard on all models |
| Multiple speed options for different cooling needs |
| omniCOOL™ bearing system |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 6.3 |
|
| Rated Speed (RPM) | 5000 |
|
| Static Pressure (inH2O) | 0.11 |
|
| Noise (dBA) | 16.5 |
|
| Rated Voltage (Vdc) | 5 |
|
| Max Input Current (mA) | 87 |
|
| Tachometer Signal | No |
|
| Rotation Detector | Yes |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 40 x 40 x 20 |
|
| Series | CFM-40V |
|
