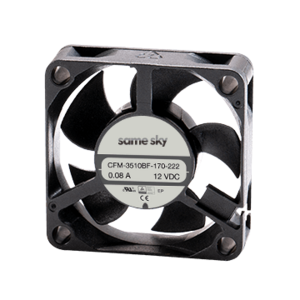

Features
| 35 x 35 mm frame |
| Dual ball bearing construction |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Max Input Current (mA) | 110 |
|
| Dimensions LxWxH (mm) | 35 x 35 x 10 |
|
| Series | CFM-35BF |
|
| Air Flow (CFM) | 5.9 |
|
| Noise (dBA) | 27.7 |
|
| PWM Control Signal | No |
|
| Rated Speed (RPM) | 9000 |
|
| Rated Voltage (Vdc) | 12 |
|
| Rotation Detector | No |
|
| Static Pressure (inH2O) | 0.17 |
|
| Tachometer Signal | No |
|
