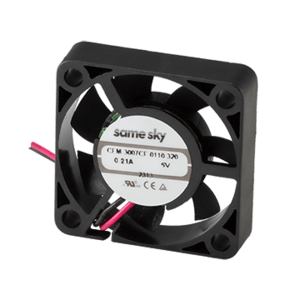

CFM-3007CF-085-264
5 V, 0.2 A, 30 x 30 x 7 mm, omniCOOL™ Dc Axial Fan
Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, this axial fan bridges the cost-performance gap between conventional sleeve and ball bearing fan designs.
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 2.81 |
|
| Rated Speed (RPM) | 8500 |
|
| Static Pressure (inH2O) | 0.12 |
|
| Noise (dBA) | 26.4 |
|
| Rated Voltage (Vdc) | 5 |
|
| Max Input Current (mA) | 200 |
|
| Tachometer Signal | No |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 30 x 30 x 7 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-30CF |
|
