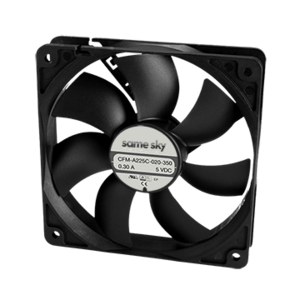

CFM-A225C-020-350
5 V, 570 mA, 120 x 120 x 25 mm, Dc Fan
The CFM-120C series is a family of 120 x 120 mm dc axial fans featuring airflows up to 69.74 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| omniCOOL™ bearing system |
| 120 x 120 mm frame |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
| Auto restart protection standard on all models |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 69.74 |
|
| Rated Speed (RPM) | 2000 |
|
| Static Pressure (inH2O) | 0.1 |
|
| Noise (dBA) | 37.8 |
|
| Rated Voltage (Vdc) | 5 |
|
| Max Input Current (mA) | 570 |
|
| Tachometer Signal | No |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 120 x 120 x 25 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-120C |
|
