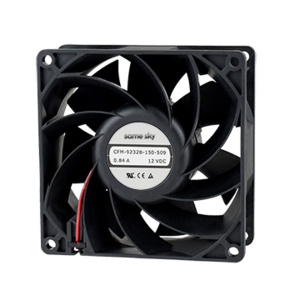

Features
| 92 x 92 mm frame |
| Multiple speed options for different cooling needs |
| Auto restart protection standard on all models |
| Dual ball bearing construction |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 50.13 |
|
| Rated Speed (RPM) | 3000 |
|
| Static Pressure (inH2O) | 0.15 |
|
| Noise (dBA) | 35.6 |
|
| Rated Voltage (Vdc) | 24 |
|
| Max Input Current (mA) | 150 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 92 x 92 x 25 |
|
| Series | CFM-92B |
|
